Introduction
1.1 Business Context
In modern enterprises, data-driven decision-making requires fast and accurate access to relational databases. However, writing SQL queries demands technical expertise, creating a bottleneck for business users, analysts, and non-technical stakeholders. This system bridges that gap by enabling users to interact with a Microsoft SQL Server database using Natural Language to SQL capabilities and Conversational AI for SQL Queries.
1.2 Solution Overview
The AI-Powered SQL Execution System/AI-Powered SQL Query Generator translates plain-English prompts into executable SQL statements. It combines a Large Language Model (LLM) with a robust backend that validates, classifies, and executes queries. This LLM-Based SQL Query Generator ensures enterprise-grade safety through intelligent validation and governance controls. To ensure enterprise-grade safety, the system includes:
- Automatic SQL classification to distinguish between read-only and destructive operations.
- Approval workflows for high-risk commands (e.g., DELETE, DROP, UPDATE without a WHERE clause).
- Comprehensive audit logging to meet compliance and forensic requirements as part of an AI SQL Automation with Audit Logging framework.
1.3 Goals
- Usability: Allow users with no SQL knowledge to query and modify data using Natural Language SQL Query Generation.
- Safety: Prevent accidental data loss or unauthorized changes through validation and approvals.
- Traceability: Record every action for accountability and auditing.
- Scalability: Support multiple concurrent users and extend to other database platforms.
2. System Architecture Overview

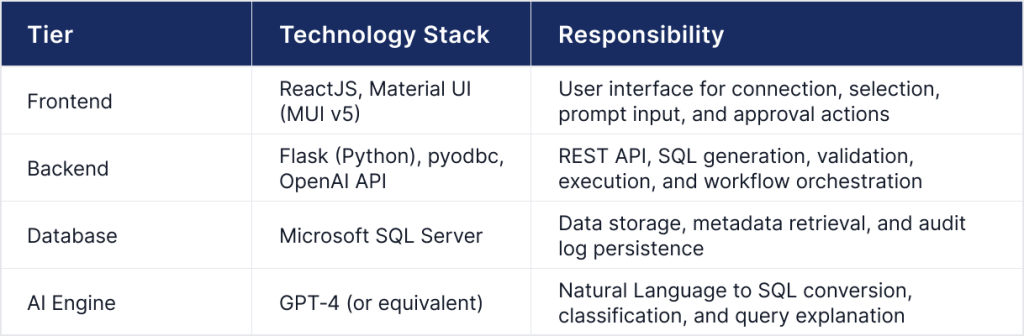

2.1 High‑Level Architecture
The system follows a modern three-tier architecture designed for an AI-Powered Database Query System:

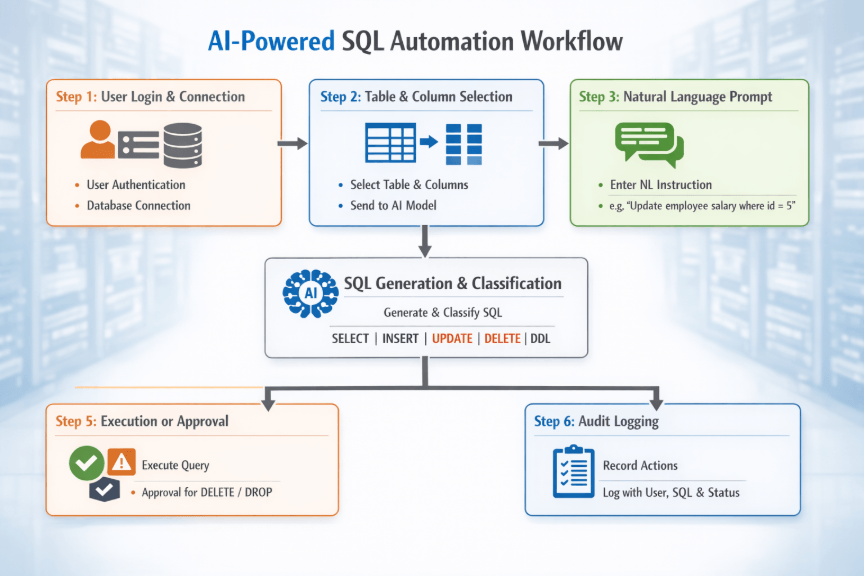

2.2 Data Flow
- User Interaction: The React frontend captures user input (credentials, table/column selections, natural language prompt) and sends it to the Flask backend.
- SQL Generation: The backend constructs a prompt with database schema context and calls the LLM to generate a SQL statement using AI SQL Query Automation.
- Classification & Validation: The generated SQL is parsed to determine its type and checked for safety rules (e.g., WHERE clause in DELETE).
- Execution or Approval:
a. Safe queries (SELECT, INSERT with proper validation) are executed immediately.
b. Destructive or ambiguous queries trigger an approval request stored in the audit log. - Audit Logging: Every step—generation, classification, approval, execution, and errors—is recorded in user_query_audit_log.
2.3 Security Boundaries
- Database credentials are never stored; they are used only to establish a transient connection per session.
- All SQL generation occurs server-side to prevent exposure of API keys.
- CORS and input validation protect against CSRF and injection attacks.
3. Components and Technologies Used
3.1 Frontend – ReactJS & Material UI
The frontend is built as a single‑page application (SPA) with a guided multi‑step workflow. Key features:
- Step 1 – Database Connection: Users provide server, database, authentication details. Credentials are sent via HTTPS and remain in memory only.
- Step 2 – Table Selection: A dynamic dropdown populated from the backend /table’s endpoint.
- Step 3 – Column Selection: Multi‑select component showing column names and types (to aid AI context).
- Step 4 – Natural Language Prompt: A text area with placeholder examples and an option to view the generated SQL before execution using an AI-Powered SQL Query Generator
- Step 5 – Execution & Approval: Displays results (tabular for SELECT, confirmation for modifications). Approval requests appear in a dedicated panel for authorized users.
Material UI v5 ensures a consistent, responsive design with theming to match corporate branding.
3.2 Backend – Flask (Python)
The Flask application exposes REST endpoints with the following responsibilities as part of an AI SQL Execution System:
- /connect – Accepts connection parameters, tests the connection using pyodbc, and initializes a session‑scoped connection pool.
- /tables – Queries INFORMATION_SCHEMA.TABLES to return a list of user tables.
- /columns – Fetches column metadata (name, data type, nullable) for a given table.
- /generate –
- Constructs a prompt that includes the selected table schema, column list, and user instruction.
- Calls the LLM (via OpenAI API) with a system prompt that restricts output to valid SQL for Natural Language SQL Query Generation.
- Parses the LLM response, extracts the SQL, and classifies it using a combination of regex and SQL parsing (e.g., sqlparse).
- Performs safety checks:
- For DELETE: enforces a WHERE clause unless explicitly overridden by approval.
- For DROP/ALTER: requires explicit approval workflow.
- Logs the generation event and returns the SQL, classification, and a unique request ID to the frontend.
- /execute – Executes non‑destructive queries directly, streams results, and logs execution.
- /approve – Accepts an approval token, updates the audit log, and executes the previously generated destructive query.
All endpoints enforce session validation and log every request.
3.3 Database – Microsoft SQL Server
SQL Server serves two primary roles within the AI-Powered Database Query System:
- Application data: The target database from which users read/write data.
- Audit store: The user_query_audit_log table resides in a separate schema to isolate auditing from application data. Its structure includes:
- audit_id (PK, auto‑increment)
- user_name
- session_id
- timestamp
- action_type (login, generate, execute, approve)
- sql_statement (if applicable)
- status (success, pending_approval, rejected, error)
- error_message
- approver (when applicable)
- approver (when applicable)
Dynamic metadata queries use INFORMATION_SCHEMA to ensure compatibility across SQL Server versions.
3.4 AI Engine – GPT Model
The system uses a GPT-based model (GPT-4 or GPT-3.5-turbo) with a carefully engineered prompt to ensure reliable SQL generation. This enables Conversational AI for SQL Queries and Natural Language to SQL conversion. The prompt includes:
- The selected table’s schema (CREATE TABLE representation)
- The user’s natural language instruction
- Constraints: “Return only the SQL statement, no explanation.”
To improve accuracy, the backend can optionally include sample rows or column comments. The model’s output is post‑processed to handle common issues like missing semicolons or incorrect quoting.
3.5 Audit Logging – Comprehensive Traceability
Every user action is logged with a rich context as part of AI SQL Automation with Audit Logging:
- Login events: Record username, timestamp, success/failure.
- Generation events: Store the original prompt, generated SQL, classification, and LLM model used.
- Execution events: Record the executed SQL, duration, row count affected (if applicable), and status.
- Approval events: Log the approver, approval timestamp, and any comments.
This logging supports compliance with standards like SOX, GDPR (by tracking data access), and internal security policies.
4. End-to-End Process Flow
Step 1: User Login & Connection
The user fills a form with database connection details (server, database, authentication method). The frontend calls /connect, and the backend:
- Validates credentials by attempting a connection.
- If successful, stores the connection string in a server‑side session (encrypted).
- Logs the login event to the audit table.
- Returns a success message and a list of available databases (if applicable).
Step 2: Table and Column Selection
Once connected, the frontend requests /tables. The backend queries INFORMATION_SCHEMA.TABLES and returns a list. After table selection, /columns fetches metadata. This context is stored in the session to be used during AI SQL Query Automation.
Step 3: Natural Language Prompt
The user types a request (e.g., “Show all employees who joined after 2020” or “Update the salary of employee with id 5 to 60000”). The frontend also allows the user to view the generated SQL before execution—a crucial safety feature in an AI SQL Query Tool with Approval Workflow.
Step 4: SQL Generation & Classification
The backend constructs a prompt that includes the table schema and columns. The LLM returns a SQL statement through Natural Language SQL Query Generation. The system then:
- Parses the SQL using sqlparse and a custom classifier to identify the command type.
- Validates safety rules:
- DELETE without a WHERE clause is flagged and requires approval.
- UPDATE with a subquery that might cause unintended updates is reviewed.
- DROP, TRUNCATE, ALTER are always routed to approval.
- Generates a unique request ID and stores the pending query in the audit log with status pending_approval if needed.
Step 5: Execution or Approval
- Immediate execution: For SELECT, INSERT, UPDATE (with safe patterns), the backend executes the query, fetches results (or affected rows), and returns them to the frontend. The audit log is updated with success.
- Approval workflow: For destructive or flagged queries, the audit log entry is marked pending_approval. An authorized user (or role) can view the pending requests in the frontend’s admin panel. Upon approval, the backend executes the SQL and updates the log with the approver’s identity.
Step 6: Audit Logging
Every transition is recorded:
- action_type = ‘generate’ with the original prompt and generated SQL.
- action_type = ‘execute’ with execution details (rows affected, duration).
- action_type = ‘approve’ with approver info.
This creates an immutable record for post‑incident analysis and compliance reporting.
5. Security and Governance

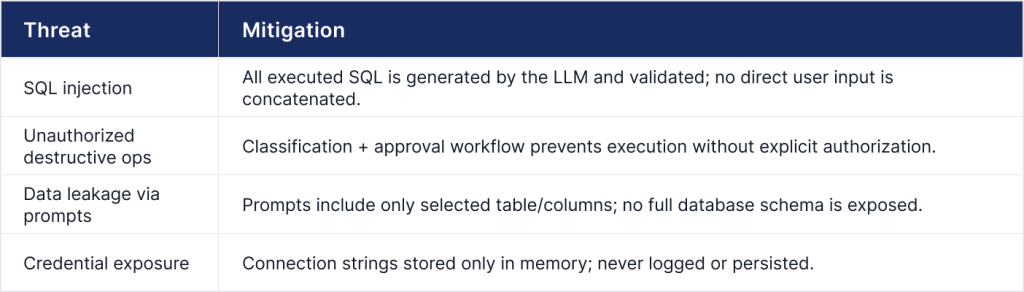

5.1 Threat Model & Mitigations
5.2 Compliance Features
- Audit trail: Every data access and modification is logged with user identity, timestamp, and exact SQL.
- Separation of duties: Destructive actions require a different user (approver) to execute.
- Data minimization: Users only see tables and columns they have access to (database permissions enforced at execution).
5.3 Future Enhancements
- Row‑level security: Integrate with database‑level permissions to restrict data visibility.
- Approval notifications: Email/Slack integration to notify approvers of pending requests.
- Anomaly detection: Use the audit log to detect unusual query patterns (e.g., bulk deletes at odd hours).
Conclusion
The AI-Powered Database Query System successfully demonstrates how natural language interfaces can democratize data access while maintaining enterprise security and governance. By combining a state-of-the-art LLM with robust backend controls, the system:
- Reduces the barrier to database interaction through Natural Language to SQL capabilities.
- Prevents accidental data loss through intelligent validation.
- Provides a complete audit trail for regulatory compliance.
Scalability & Future Roadmap
The architecture is modular and can be extended in several ways:
- Multi‑database support: Add connectors for PostgreSQL, MySQL, etc., using a database abstraction layer.
- Role‑Based Access Control (RBAC): Integrate with corporate SSO (Okta, Azure AD) and map roles to approval permissions.
- Advanced Analytics: Build dashboards on top of the audit log to visualize usage patterns and identify training opportunities.
- Natural Language Explanations: Use the LLM to explain generated SQL back to the user, building trust and SQL literacy.
Deployment Considerations
- The system can be containerized (Docker) and deployed on Kubernetes for high availability.
- The LLM API key should be stored in a secrets manager (e.g., Azure Key Vault, AWS Secrets Manager).
- Regular reviews of the audit log and approval patterns are recommended to fine-tune safety rules for continued AI SQL Query Automation success.
AI-Powered Natural Language SQL Execution - FAQs
An AI-powered natural language SQL execution system allows users to generate and execute SQL queries using plain English instead of writing manual SQL code.
The system uses Large Language Models (LLMs) like GPT-4 to convert user prompts into executable SQL queries based on database schema and context.
Approval workflows help prevent accidental or unauthorized database changes by requiring validation before executing high-risk SQL operations like DELETE, DROP, or ALTER.
Audit logging records every SQL-related action, including query generation, execution, approvals, errors, timestamps, and user activity for security and compliance purposes.
Yes. Users can simply type requests in natural language, and the AI automatically converts them into SQL queries without requiring SQL expertise.
AI-generated SQL can be secure when combined with validation checks, approval workflows, role-based access control, and audit logging mechanisms.
AI-powered SQL systems can support databases like Microsoft SQL Server, PostgreSQL, MySQL, Oracle, and other relational databases.
AI SQL automation improves productivity, reduces manual effort, speeds up reporting, minimizes query errors, and enables faster data-driven decision-making.
LLMs understand user intent, database structure, and contextual language patterns to generate more accurate and meaningful SQL queries.
Yes. Features like audit trails, approval workflows, access controls, and security validations make AI SQL systems suitable for enterprise governance and compliance.
